Z-PSR-B10T

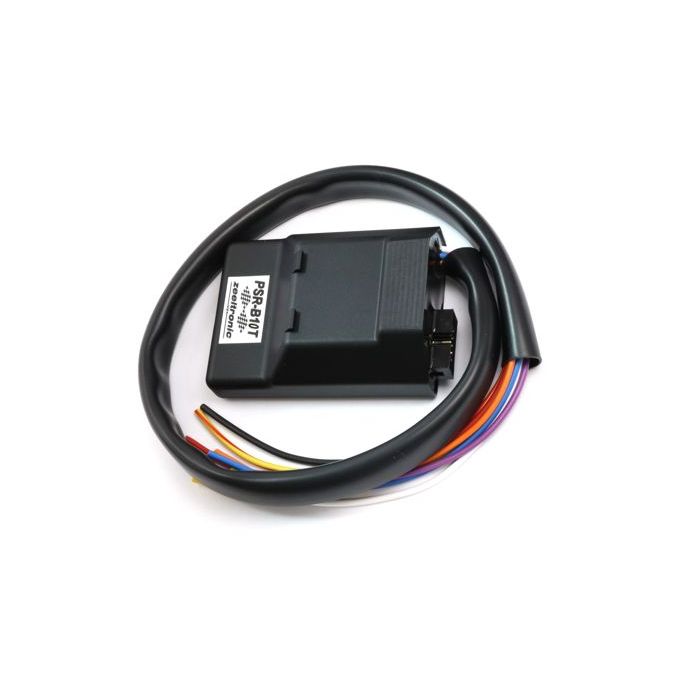

PSR-B10T - single channel AC-CDI
PSR-B10T - single channel AC-CDI
Technical data:
- minimum revs 200 RPM
- maximum revs 20000 RPM
- does not require power supply for ignition operation
- power supply needed only when power jet is used
- minimum supply voltage 7 Volts
- maximum supply voltage 17 Volts
- maximum continuous current for and power jet and GPO output 1 Amp
- energy delivered to ignition coil 75 mJ
Features:
- CDI charged from hi voltage charging coils (generator)
- power supply needed only for GPO (General Purpose Output)
- 2 ignition maps
- one input for magnetic pickup
- external switch for changing ignition map while riding
- general purpose outputs (GPO)
- separate rev limit for each ignition map
- soft rev limit (three stage rev limit)
- tachometer output
- signal delay compensation
- timing calculation for every 1 RPM change (1000, 1002, .. , 9805, 9806, ...)
- easy and fast programming on the field, via hand held programmer
- programming while machine running - you can immediately see effects
- monitoring of rev's, ignition advance,... via LCD(hand held programmer)
- fast processing for high accuracy - delays from 1us
For a copy of the installation instructions please click here.
