Z-PDCIS-MX11T

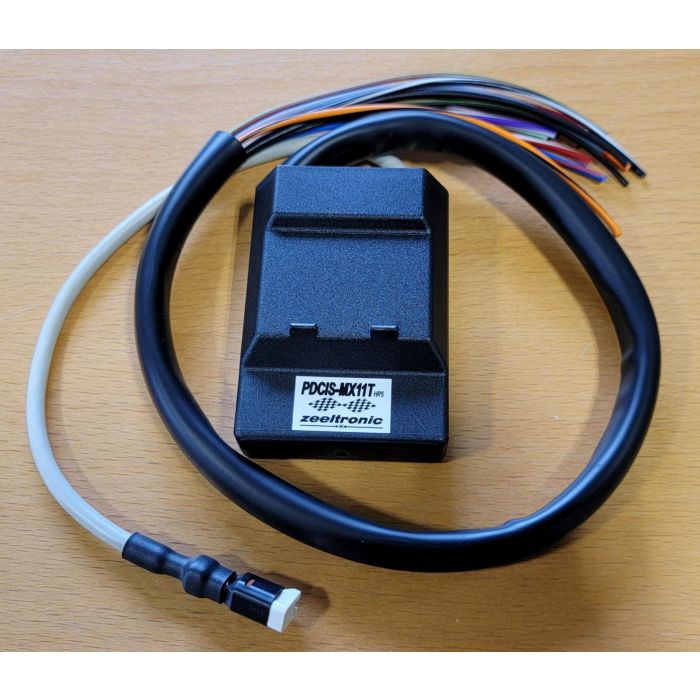

PDCIS-MX11T - single channel programmable DC-CDI

...programmable with Handheld Programmer and PC

Supported bikes:- single cylinder, or twin wasted spark engines

Technical data:

-3D Interpolated ignition map

- minimum revs 200RPM

- maximum revs 20000RPM

- minimum supply voltage 7 Volts

- maximum supply voltage 18 Volts

- recommended power supply from 12 to 15Volts

- stand-by current draw; 0.09 Amp

- current draw at 1300RPM 0.15 Amp

- current draw at 12000RPM 1 Amp

- maximum continuous current for shift light and power jet output 1 Amp

- peak current for shift light and power jet output 5 Amp

- constant spark energy from idle to 11000RPM 51mJ

- spark energy at 15000RPM 38mJ

- spark energy at 20000RPM 30mJ Circuit is protected against reverse supply voltage (wrong connection).

Features:

- fast power-up (also starts only with condenser)

- full power starting spark energy already at 7Volts power supply

- one isolated input (pickup) - one ignition coil output - external switch for changing ignition map while riding

- TPS input (Throttle Position Sensor)

- shift light output

- 2 power jet outputs, one is with duty cycle (pulsed) operation for A/F ratio regulation

- quick shift (shift kill)

- soft rev limit (three stage rev limit)

- reduced number of sparks at high revs with closed throttle (TCT mode)

- tachometer output

- easy and fast programming on the field, via hand held programmer - programming while machine running

- you can immediately see effects

- each curve can be set in 4 to 12 curve points

- 3D interpolated ignition map, if TPS selected

- signal delay compensation

- instant monitoring of rev's and angle, via LCD(hand held programmer)

- fast processing for high accuracy

- delays from 1us

- timing calculation for every 1 RPM change (1000, 1002, .. , 9805, 9806, ...)
