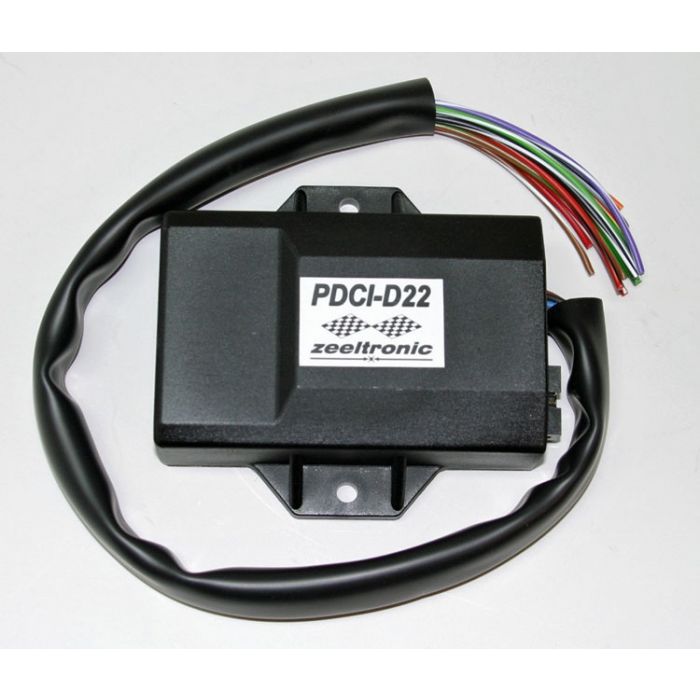

Z-PDCI-D22
$506.56
SKU
Z-PDCI-D22
2 Channel Programmable
DC-CDI Ignition
Works with most twin cylinder engines
DRAG RACE ONLY
2 Channel Programmable
DC-CDI Ignition
DC-CDI Ignition
Most Twin Cylinder Engines
DRAG RACE ONLY
DRAG RACE FEATURES
Quick Shift/Smart Shift
Launch Rev Limit
Burn Out Rev Limit
Individual Coil Advance Setting
Shift Counter
Auto Shift Mode
TECHNICAL
Minimum Revs 200rpm
Maximum Revs 20000rpm
Minimum Supply Voltage 7V
Maximum Supply Voltage 15V
Standby Current Draw <.1A
Current Draw @ 1300rpm=.45A
Current Draw @ 12000rpm=2.6A
Max Current Shift Light/Power Jet
= 1A Constant/5A Peak
Constant Spark Energy
from idle to 15000rpm>53mJ
FEATURES
Fast Power-up
Full Power Spark Energy
@ 7VDC Input
2 Isolated Inputs for Pickups
2 Independent Coil Outputs
Individual Advance/Retard
for each Coil Output
Store/Load for 2 Ignition Maps
Ignition Map Change by Map Switch
Ignition Map Change by Gear Change
Shift Light Output
Power Jet Output
Shift Light Output
Power Jet Output
Gear Select Output
Quick Shift Output
Rev Limit (3 stage)
Tach Output
Hand Held Programmer
PC-USB Programming
Programmable w/Engine Running
4 to 12 Points in Ignition Curves
Signal Delay Compensation
Monitor Revs and Timing via
both Programming Methods
Timing Updated every 1rpm
Rev Limit (3 stage)
Tach Output
Hand Held Programmer
PC-USB Programming
Programmable w/Engine Running
4 to 12 Points in Ignition Curves
Signal Delay Compensation
Monitor Revs and Timing via
both Programming Methods
Timing Updated every 1rpm
