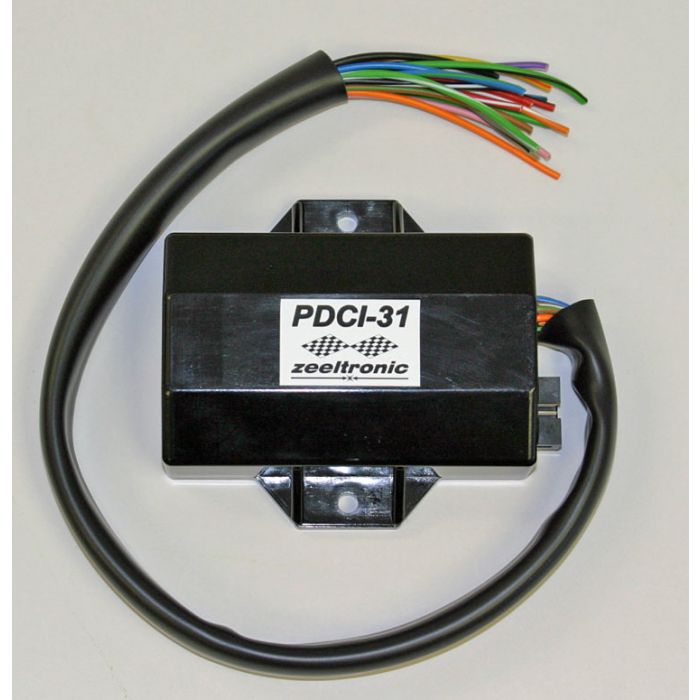

Z-PDCI-31

3 Channel Programmable
DC-CDI Ignition

Kawasaki H2, H1D, KH400, S3

Suzuki GT550, GT750

Yamaha Banshee Based 3 Cylinder Engines



DRAG RACE ONLY

Compatible with Kawasaki
Coils and Pickups



DRAG RACE FEATURES



Quick Shift/Smart Shift

Launch Rev Limit

Burn Out Rev Limit

Individual Coil Advance Setting

TECHNICAL

Minimum Revs 200rpm
Maximum Revs 20000rpm
Minimum Supply Voltage 9V
Maximum Supply Voltage 18V
Standby Current Draw <.05A
Current Draw @ 1300rpm=.4A
Current Draw @ 12000rpm=2.4A
Max Current Shift Light/Power Jet
   = 1A Constant/5A Peak
Constant Spark Energy
   from idle to 13000rpm>35mJ

FEATURES

Fast Power-up
Full Power Spark Energy
   @ 7VDC Input
3 Isolated Inputs for Pickups
3 Independent Coil Outputs
Individual Advance/Retard
   for each Coil Output
Store/Load for 2 Ignition Maps
Ignition Map Change while Running
Shift Light Output
Power Jet Output
Quick Shift Output
Rev Limit (3 stage)
Tach Output
Hand Held Programmer
PC-USB Programming
Programmable w/Engine Running
4 to 12 Points in Ignition Curves
Signal Delay Compensation
Monitor Revs and Timing via
   both Programming Methods
Timing Updated every 1rpm

For a copy of the installation instructions please click here.
