Z-PCDI-XT

$243.54
SKU
Z-PCDI-XT

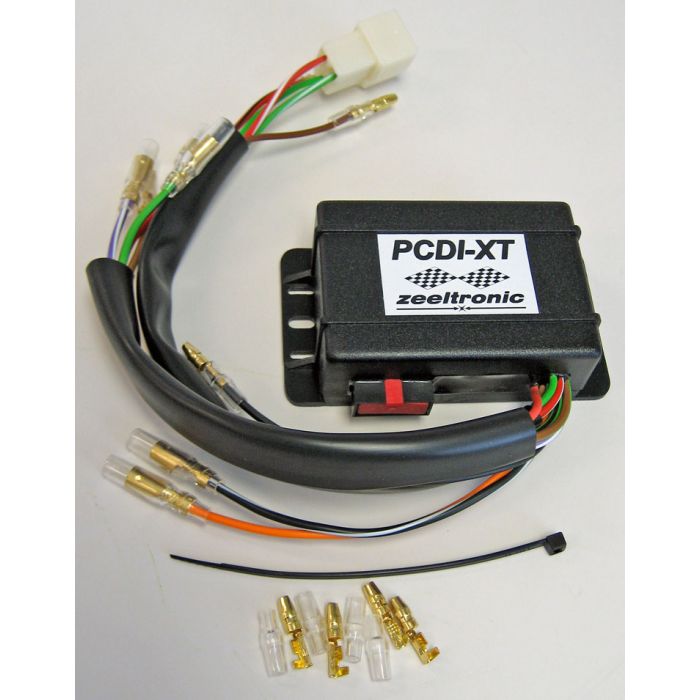

PCDI-XT - single channel programmable CDI

Yamaha XT550/600 - European Models ONLY





PCDI-XT - single channel programmable CDI

Yamaha XT550/600 - European Models ONLY

TECHNICAL DATA
Limit values:
- minimum revs                                                              100 RPM
- maximum revs                                                             20000 RPM
- minimum supply voltage                                              8 Volts
- maximum supply voltage                                            16 Volts
- max. supply voltage for 1 minute                                35 Volts
- current draw                                                                25 mAmp
- maximum continuous current for shift light output      1 Amp
  12V power supply is required only when shift light is used.
Circuit is protected against reverse supply voltage (wrong connection).

Features:
- kickback protection for large single cylinder engine
- CDI charged from hi voltage charging coils (generator)
- store and load function for 2 ignition maps
- one input for magnetic pickup
- external switch for changing ignition map while riding
- shift light output
- tachometer output
- advance/retard whole ignition curve
- three stage rev limit (retard timing, reduced spark, spark off)
- signal delay compensation
- timing calculation for every 1 RPM change (1000, 1002, .. , 9805, 9806, ...)
- easy and fast programming on the field, via hand held programmer
- programming while machine running - you can immediately see effects
- monitoring of rev's, ignition advance,... via LCD(hand held programmer)
- fast processing for high accuracy - delays from 1us
