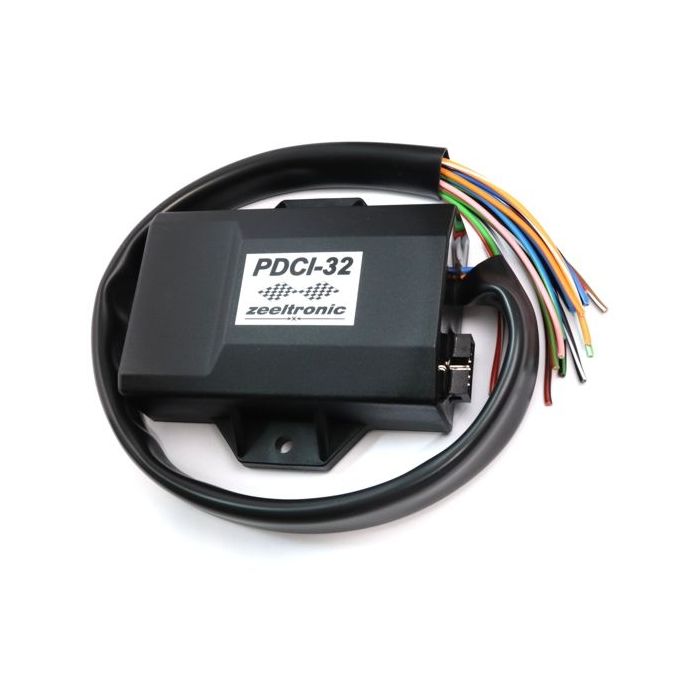

Z-PDCI-32

PDCI-32 - 3 channel programmable DC-CDI specially designed for drag racing

...programmable with Handheld Programmer and PC

Technical data:
- minimum revs 200RPM
- maximum revs 20000RPM
- minimum supply voltage 7 Volts
- recommended power supply 12-15 Volts
- maximum supply voltage 17 Volts
- stand-by current draw 0.09 Amp
- current draw at 1300 RPM 0.75 Amp
- current draw at 10000 RPM 3.5 Amp
- maximum continuous current for shift light and power jet output 1 Amp
- peak current for shift light and power jet output 5 Amp
- spark energy at 9000RPM 69mJ
- spark energy at 12000RPM 44mJ

Features:
- fast power-up
- full power starting spark energy already at 7 Volts power supply
- 3 isolated inputs for pickups
- 3 independent ignition coil outputs
- individual advance/retard of each output
- store and load function for two ignition maps
- external switch for changing ignition map while riding
- ignition map change by map switch
- ignition map change by gear change
- shift light output
- power jet output
- gear select output
- quick shift (shift kill)
- rev limit
- launch rev limit
- burn out rev limit
- shift counter
- auto shift mode
- tachometer output
- easy and fast programming on the field, via hand held programmer
- PC-USB programming
- programming while machine running - you can immediately see effects

For a copy of the installation instructions please click here.
