Z-PPV-RZ3C

$191.58
SKU
Z-PPV-RZ3C

Programmable
Power Valve Controller

Yamaha
RZ350
RD350LCYPVS
Models 1WT, 1WW, F2, 31K, 48H

w/wire connectors

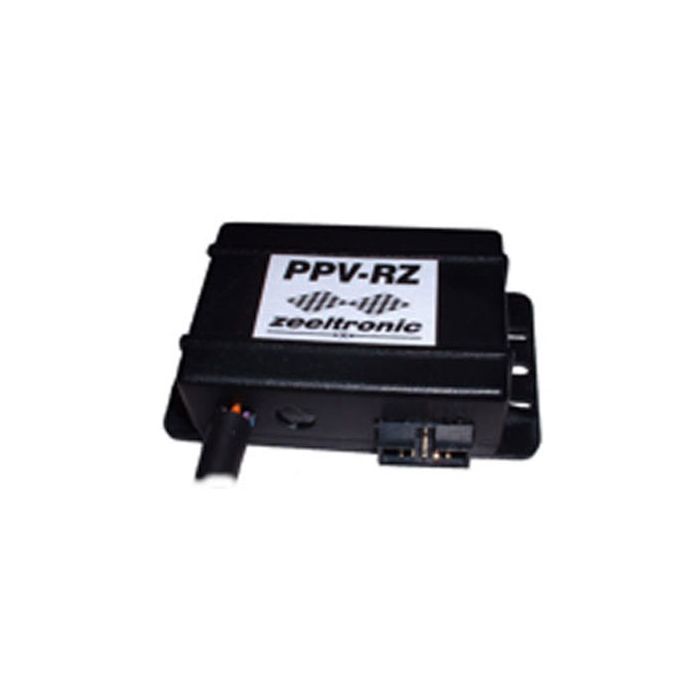

 Programmable power valve ( exhaust valve ) controller PPV-RZ3

Supports 5 wire servos.

Supported bikes:
Yamaha:
RZ350YPVS
RD350LCYPVS
Models 1WT, 1WW, F2, 31K, 48H

Includes Wire Connectors
For Yamaha Wire Harness


Technical data:
- minimum revs 200 RPM
- maximum revs 20000 RPM
- minimum supply voltage 8 Volts
- maximum supply voltage 20 Volts
- current draw 30mA
- max. supply voltage for 1 minute 40 Volts
- dimensions (LxWxH) 72x50x27mm

Circuit is protected against reverse supply voltage (wrong connection).

Features:
- ten custom programmable curves
- store and load function for ten custom curves
- easy and fast programming on the field, via handheld programmer
- programming while machine running - you can immediately see effects
- each curve can be set with 2 to 8 curve points
- each curve point can be programmed with 100rpm steps and servo positions from 0% to 100% with 1% steps
- programmable deviation from 2% to 20% with 1% steps
- programmable max close and max open positions with 1000 steps through whole servo range
- instant monitoring of valve position, via LCD (handheld programmer)
- fast processing for high accuracy
- self test on power-up
- error detecting (position sensor failure, servo motor failure)
- short connection on servo motor output, can't damage controller


For a copy of the installation instructions please click here.
