Z-PPV-RG2

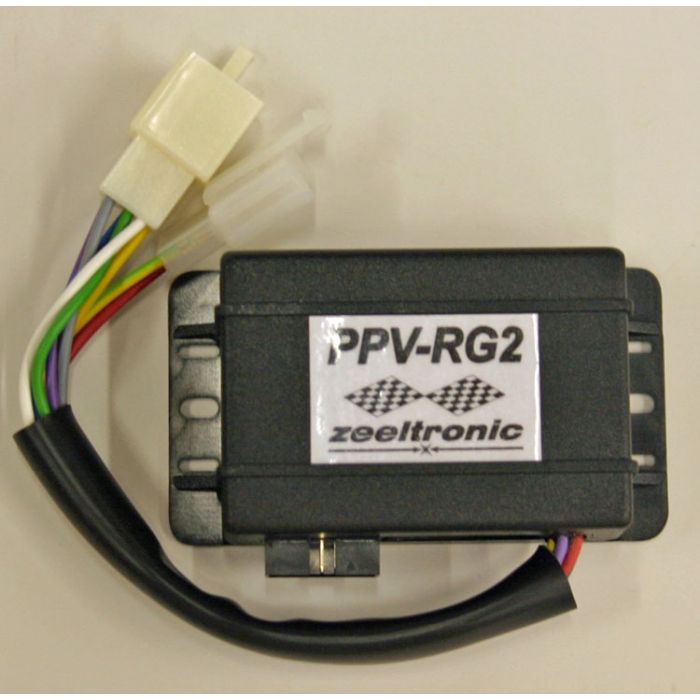

PPV-RG2 - Programmable Power Valve (exhaust valve) Controller

Supported bikes:
Suzuki: RG500

Technical data:
- minimum revs 200 RPM
- maximum revs 20000 RPM
- minimum supply voltage 8 Volts
- maximum supply voltage 20 Volts
- current draw 30mA
- max. supply voltage for 1 minute 40 Volts
- dimensions (LxWxH) 72x50x27mm

Circuit is protected against reverse supply voltage (wrong connection).

Features:
- acceleration compensation ( earlier opening, while hard acceleration, to ensure opened valve at programmed revs )
- programming while machine running - you can immediately see effects
- instant monitoring of valve position, via LCD ( handheld programmer )
- fast processing for high accuracy
- self test on power-up
- error detecting (position sensor failure, servo motor failure)
- short connection on servo motor output, can't damage controller



For a copy of the installation instructions please click here.
