Z-PDCI-22
$373.43
SKU
Z-PDCI-22
Programmable
DC-CDI Ignition
ATAC Power Valve Controller
Honda NS400R

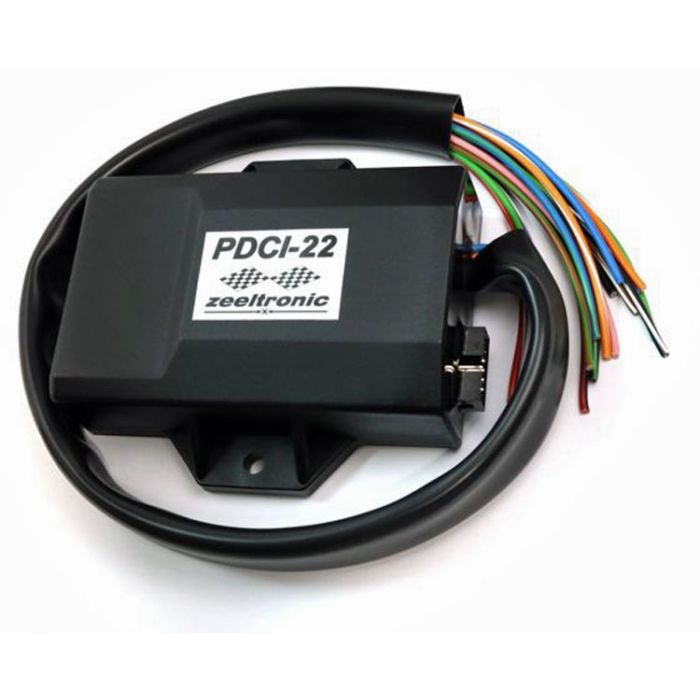

PDCI-22 - programmable DC-CDI and PV controller
...programmable with Handheld Programmer and PC
Supported bikes:
...programmable with Handheld Programmer and PC
Supported bikes:
Honda NS400R
Technical data:
- minimum revs 200 RPM
- maximum revs 20000 RPM
- minimum supply voltage 7 Volts
- recommended power supply voltage 12÷15 Volts
- maximum supply voltage 17 Volts
- stand-by current draw < 0.09 Amp
- current draw at 1300 RPM < 0.3 Amp
- current draw at 12000 RPM < 2.4 Amp
- maximum continuous current for shift light and power jet output 1 Amp
- peak current for shift light and power jet output 5 Amp
Features:
- fast power-up
- full power starting spark energy already at 7Volts power supply
- 2 isolated inputs for pickups
- 3 independent ignition coil outputs
- store and load function for two ignition maps
- external switch for changing ignition map while riding
- ATAC solenoid output
- shift light output
- power jet output
- quick shift (shift kill)
- soft rev limit (three stage rev limit)
- tachometer output
- easy and fast programming on the field, via hand held programmer
- PC-USB programming
- programming while machine running - you can immediately see effects
- each curve can be set in 4 to 12 curve points
- signal delay compensation
- instant monitoring of rev's and angle, via hand held programmer and PC
- timing calculation for every 1 RPM change (1000, 1002, .. , 9805, 9806, ...)
For a copy of the installation instructions please click here.
Technical data:
- minimum revs 200 RPM
- maximum revs 20000 RPM
- minimum supply voltage 7 Volts
- recommended power supply voltage 12÷15 Volts
- maximum supply voltage 17 Volts
- stand-by current draw < 0.09 Amp
- current draw at 1300 RPM < 0.3 Amp
- current draw at 12000 RPM < 2.4 Amp
- maximum continuous current for shift light and power jet output 1 Amp
- peak current for shift light and power jet output 5 Amp
Features:
- fast power-up
- full power starting spark energy already at 7Volts power supply
- 2 isolated inputs for pickups
- 3 independent ignition coil outputs
- store and load function for two ignition maps
- external switch for changing ignition map while riding
- ATAC solenoid output
- shift light output
- power jet output
- quick shift (shift kill)
- soft rev limit (three stage rev limit)
- tachometer output
- easy and fast programming on the field, via hand held programmer
- PC-USB programming
- programming while machine running - you can immediately see effects
- each curve can be set in 4 to 12 curve points
- signal delay compensation
- instant monitoring of rev's and angle, via hand held programmer and PC
- timing calculation for every 1 RPM change (1000, 1002, .. , 9805, 9806, ...)
For a copy of the installation instructions please click here.
